Hi-Hat Top-End Roll-Off: Why Classic Drum Machines Sound Different

When you listen to vintage drum machines like the TR-808, TR-909, or LinnDrum, there’s a distinct quality to the hi-hats - crisp, characterful, and somehow… not overly bright.

That’s no accident. It’s the result of built-in top-end roll-off, a technical limitation (and now, a beloved aesthetic) of the gear that shaped electronic music.

In this post, we’re diving into:

• How and why classic drum machines roll off the high end

• A detailed comparison of their hi-hat frequency profiles

• What’s different in modern gear

• How to replicate vintage hat tone in today’s mixes

Why Vintage Drum Machines Roll Off the Top End

Most early drum machines relied on low sample rates, bit limitations, or simple analog filtering. These choices resulted in a natural drop-off in frequency response - especially for hi-hats and cymbals.

Where modern hats often extend cleanly to 18–20 kHz, vintage hats tended to fade out around 10–12 kHz. The result? A sound that feels tight, controlled, and never harsh.

This wasn’t just an EQ decision - it was baked into the circuitry.

Classic Roland & Linn Drum Machines: Hi-Hat Frequency Comparison

Here’s a breakdown of the most influential machines, focused on their hi-hat top-end characteristics:

Drum Machine	Source Type	Peak Energy	Roll-Off Starts	Nothing Past	Tonal Notes
TR-606	Analog (square + noise)	~6–9 kHz	~10–11 kHz	~12 kHz	Lo-fi, sizzly, grainy
TR-808	Analog (6 square osc)	~5–7 kHz	~9–10 kHz	~12 kHz	Metallic, warm, diffused
TR-909	6-bit PCM + analog filter	~6–7 kHz	~6–8 kHz	~12 kHz	Crisp, punchy, controlled
TR-707	8-bit PCM	~7–9 kHz	~11–12 kHz	~13 kHz	Bright, digital bite
TR-727	8-bit PCM (Latin)	~7–9 kHz	~10–11 kHz	~12 kHz	Thinner, noisier than 707
TR-505	8-bit PCM	~5–7 kHz	~9–10 kHz	~11 kHz	Thin, gritty, narrow
TR-626	8-bit PCM	~6–8 kHz	~11 kHz	~13 kHz	Cleaner digital with subtle harshness
LinnDrum	8-bit PCM	~7–9 kHz	~10–11 kHz	~12 kHz	Crunchy, warm, mid-heavy

What About Modern Drum Machines?

Modern gear - whether it’s a Roland TR-8S, Elektron Rytm, Maschine+, or DAW-based sampler - does not roll off the top end by default. Most offer full 20 kHz clarity or higher, with no filtering unless added manually.

Modern Drum Machine	Top-End Roll-Off?	Notes
Elektron Rytm	❌ None (unless filtered)	Analog flavour, but full bandwidth
Roland TR-8S	❌ (emulated if desired)	Models vintage kits, but playback is clean
Maschine+/Battery	❌ None	Full-range, depends on sample
Arturia DrumBrute	⚠️ Slight analog roll-off	Naturally softer top end
DAW Samplers	❌ None	Clean unless processed

Want That Vintage Hi-Hat Feel? Use This Cheat Sheet

Here’s how to dial in that vintage feel using filters and EQ:

Target Sound	LPF Setting	Extra FX	Notes
TR-808	LPF @ 9.5 kHz, 12 dB/oct	Light tape or tube sat	Focuses energy around 6 kHz
TR-909	LPF @ 7.5 kHz, 12 dB/oct	Compression / transient softening	Tames digital glare
TR-606	LPF @ 10.5 kHz, 6 dB/oct	Bitcrush or vinyl sim	Gritty and noisy feel
TR-707	LPF @ 11.5 kHz, 6 dB/oct	8-bit aliasing	Brighter but crunchy
TR-505	LPF @ 10 kHz, 12 dB/oct	Bit reduction	Dry and lo-fi
LinnDrum	LPF @ 11 kHz, 12 dB/oct	Soft tape hiss	Crunchy midrange tone

Pro Tip: Add a small boost (1–2 dB) near the energy peak (e.g., 6.5–7 kHz) before the filter for extra realism.

Why It Matters

Understanding hi-hat top-end roll-off isn’t just vintage geekery. It’s a way to:

• Control harshness in your mix

• Match the tone of iconic records

• Add depth without EQing everything to death

In a world of ultra-bright samples and surgically clean plugins, recreating these natural limitations can give your production more warmth, focus, and personality.

Bonus Insight: Even the Pultec Rolls Off the Top

It’s not just drum machines. Even the iconic Pultec EQP-1A, famous for its silky highs, doesn’t have a perfectly flat response up to 20 kHz.

• While the high-frequency boost section lets you dial in “air” at 10, 12, or 16 kHz, the circuit itself naturally starts to roll off above ~16–18 kHz, depending on the model.

• This isn’t a flaw - it’s part of what makes it sound so smooth and musical. The gentle slope softens transients and keeps brightness from becoming brittle.

Just like vintage drum machines, the Pultec shows that limiting the top end can sound more elegant than boosting it endlessly.

Final Thoughts

If your hi-hats sound harsh, plastic, or just “too new” - try rolling off the top end. Not with a brickwall filter, but with a gentle slope and a little intention.

Sometimes, the magic isn’t in what’s added… it’s in what’s missing.

Drum Machine Stats

Roland TR-606 Hi-Hat Frequency Facts

• Sound Source: Square wave bursts + analog noise.

• Filter Circuit: High-pass and band-pass analog filtering.

🎧 Frequency Characteristics:

• Main Frequency Range: ~6–9 kHz

• Energy Peak: ~7–8 kHz

• Roll-Off Starts: ~10–11 kHz

• Nothing Past: ~12 kHz

🔎 Tonal Notes:

• Sizzly and lo-fi with a noisy decay.

• Narrower and more “gritty” than 808 or 909.

• Good for industrial, minimal, and electro sounds.

Roland TR-808 Hi-Hat Frequency Facts

• Sound Source: Six square wave oscillators summed and filtered.

• Filter Circuit: Band-pass and high-pass filters.

🎧 Frequency Characteristics:

• Main Frequency Range: ~5–7 kHz

• Energy Peak: ~6 kHz

• Roll-Off Starts: ~9–10 kHz

• Nothing Past: ~12 kHz

🔎 Tonal Notes:

• Metallic and diffused, without a sharp pitch.

• Very little high-end sheen.

• Warm, vintage, and instantly recognisable.

Roland TR-909 Hi-Hat Frequency Facts

• Sound Source: 6-bit PCM cymbal sample (with analog band-pass filter).

• Filtering is part of its analog signal path.

🎧 Frequency Characteristics:

• Main Frequency Range: ~6–7 kHz

• Energy Peak: ~6.5 kHz

• Roll-Off Starts: ~6–8 kHz

• Nothing Past: ~12 kHz

🔎 Tonal Notes:

• Crisp, snappy, and mid-focused.

• No real brightness or shimmer.

• Controlled and punchy with no harshness.

Roland TR-707 Hi-Hat Frequency Facts

• Sound Source: 8-bit PCM samples of real cymbals.

🎧 Frequency Characteristics:

• Main Frequency Range: ~4–12.5 kHz

• Energy Peak: ~7–9 kHz

• Roll-Off Starts: ~11–12 kHz

• Nothing Past: ~13 kHz

🔎 Tonal Notes:

• Bright, digital bite with aliasing grain.

• More “modern” than the 909 in feel.

• Punchy but harsh if not tamed.

Roland TR-727 Hi-Hat Frequency Facts

• Sound Source: 8-bit PCM samples from Latin percussion recordings.

🎧 Frequency Characteristics:

• Main Frequency Range: ~5–11.5 kHz

• Energy Peak: ~7–9 kHz

• Roll-Off Starts: ~10–11 kHz

• Nothing Past: ~12 kHz

🔎 Tonal Notes:

• Thinner and grainier than 707.

• Noisy and brittle.

• Useful for layered Latin textures or retro edge.

Roland TR-505 Hi-Hat Frequency Facts

• Sound Source: 8-bit PCM samples (shorter and grainier than the 707).

🎧 Frequency Characteristics:

• Main Frequency Range: ~4–10 kHz

• Energy Peak: ~5–7 kHz

• Roll-Off Starts: ~9–10 kHz

• Nothing Past: ~11 kHz

🔎 Tonal Notes:

• Narrow and dry with digital grit.

• Feels lo-fi and industrial.

• Lacks air, but cuts in the mids.

Roland TR-626 Hi-Hat Frequency Facts

• Sound Source: 8-bit PCM samples, digitally cleaner than 505.

🎧 Frequency Characteristics:

• Main Frequency Range: ~4–12 kHz

• Energy Peak: ~6–8 kHz

• Roll-Off Starts: ~11 kHz

• Nothing Past: ~13 kHz

🔎 Tonal Notes:

• Clean but still digitally cold.

• Subtle harshness in the high mids.

• Versatile in lo-fi and early ‘90s-style tracks.

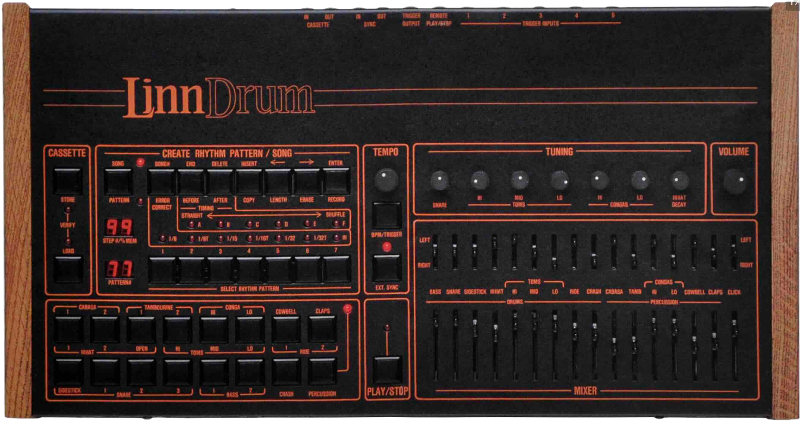

LinnDrum Hi-Hat Frequency Facts

• Sound Source: 8-bit PCM samples of real acoustic cymbals.

🎧 Frequency Characteristics:

• Main Frequency Range: ~5–10.5 kHz

• Energy Peak: ~7–9 kHz

• Roll-Off Starts: ~10–11 kHz

• Nothing Past: ~12 kHz

🔎 Tonal Notes:

• Crunchy and warm with a midrange focus.

• Slight aliasing adds character.

• Sits well in funk, electro, and early pop.

Bonus - E-mu SP-1200 Hi-Hat Frequency Facts

• Sound Source: User-loadable 12-bit PCM samples, played back at 26.04 kHz.

🎧 Frequency Characteristics:

• Main Frequency Range: ~5–8 kHz

• Energy Peak: ~6–7.5 kHz

• Roll-Off Starts: ~9–10 kHz

• Nothing Past: ~11–12 kHz

🔎 Tonal Notes:

• Dark, crunchy, and alias-heavy.

• Hi-hats sound boxy but punchy.

• Defines golden-era hip-hop and gritty house.
